250C 600V UL21386 PFA电缆
产品描述 Description
产品名称：多芯PFA电缆
型号：AWM21386
尺寸：2*18~7*14AWG
产品性能 Feature
额定电压：600V
额定温度：250℃

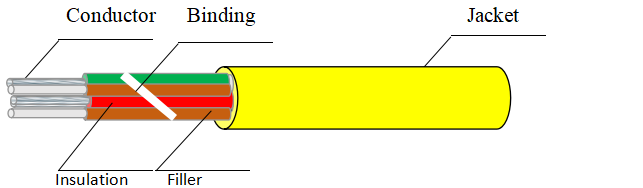

产品结构 Structure
导体：镀锡丝，镀镍丝
绝缘：PFA
填充：PFA绝缘玻纤绳（可选）
捆绑：涤纶纱（可选）
外护：PFA
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.51 | 4.4±0.2 |
3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.51 | 4.7±0.3 |
4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.51 | 5.1±0.3 |
5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.51 | 5.6±0.3 |
6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.51 | 5.8±0.3 |
7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.51 | 6.1±0.3 |
2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.51 | 5.0±0.3 |
3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.51 | 5.3±0.3 |
4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.51 | 5.8±0.3 |
5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.51 | 6.4±0.3 |
6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.51 | 6.6±0.3 |
7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.51 | 7.0±0.4 |
2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.51 | 5.8±0.3 |
3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.51 | 6.2±0.3 |
4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.51 | 6.8±0.4 |
5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.51 | 7.5±0.4 |
6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.51 | 7.7±0.4 |
7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.51 | 8.2±0.4 |
