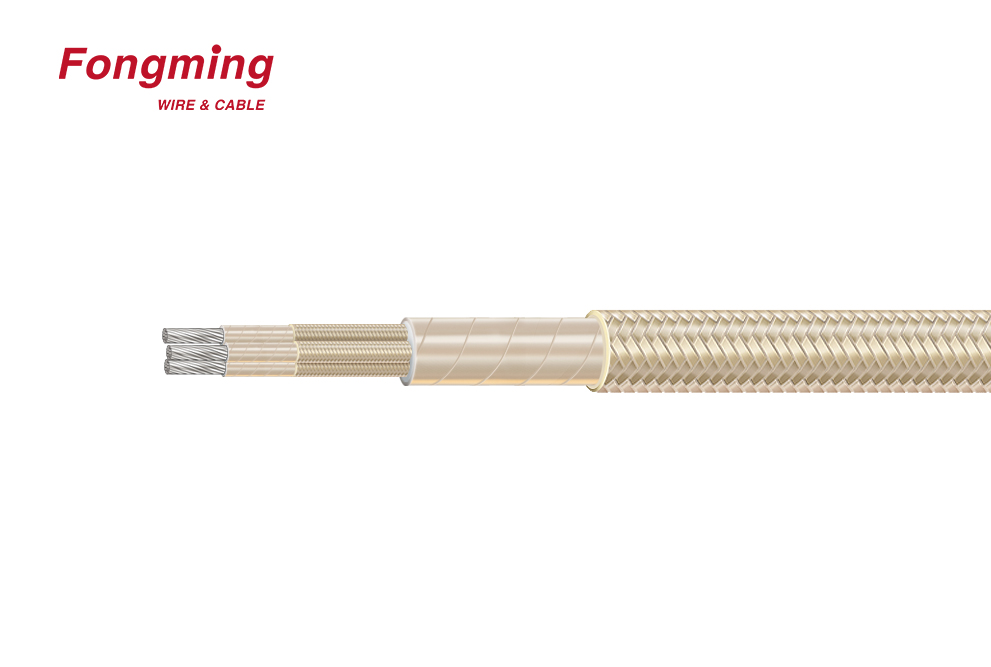

MGT450-MULTI
Fongming
产品描述
名称:耐高温电缆
型号:MGT450-MULTI
尺寸:2*22-4*8AWG
产品性能
额定电压:600v
额定温度:450°C

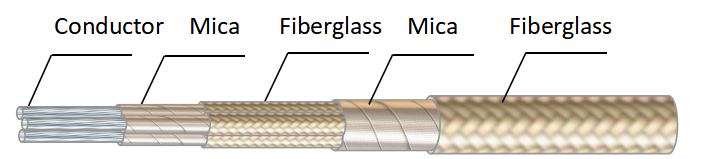

产品结构
导体:镀镍丝27%
绝缘:云母绕包
外护:玻纤编织，高温涂层
颜色:本色
填充:(可选)玻纤
成缆&绕包:云母带
外护:玻纤编织，高温涂层
颜色:本色
执行标准:UL758、UL1581
Size AWG | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Wrapping Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | OD (mm) |
2*22 | 7/0.254 | 0.76 | 0.64 | 2.0 | 0.18 | 2.4±0.1 | 0.28 | 5.4 | 0.13-0.20 | 5.8±0.3 |
4*16 | 26/0.254 | 1.50 | 2.8 | 3.2±0.2 | 0.28 | 8.3 | 0.13-0.20 | 8.7±0.3 | ||
12*16 | 26/0.254 | 1.50 | 2.8 | 3.2±0.2 | 0.28 | 13.9 | 0.13-0.20 | 13.3±0.5 | ||
16*16 | 26/0.254 | 1.50 | 2.8 | 3.2±0.2 | 0.28 | 15.3 | 0.69 | 15.7±0.5 | ||
4*12 | 65/0.254 | 2.37 | 3.7 | 4.1±0.2 | 0.28 | 10.5 | 0.13-0.20 | 10.9±0.5 | ||
4*8 | 163/0.254 | 4.11 | 0.76 | 5.6 | 0.38 | 6.4±0.5 | 0.28 | 16.0 | 0.13-0.2 | 16.4±0.5 |
