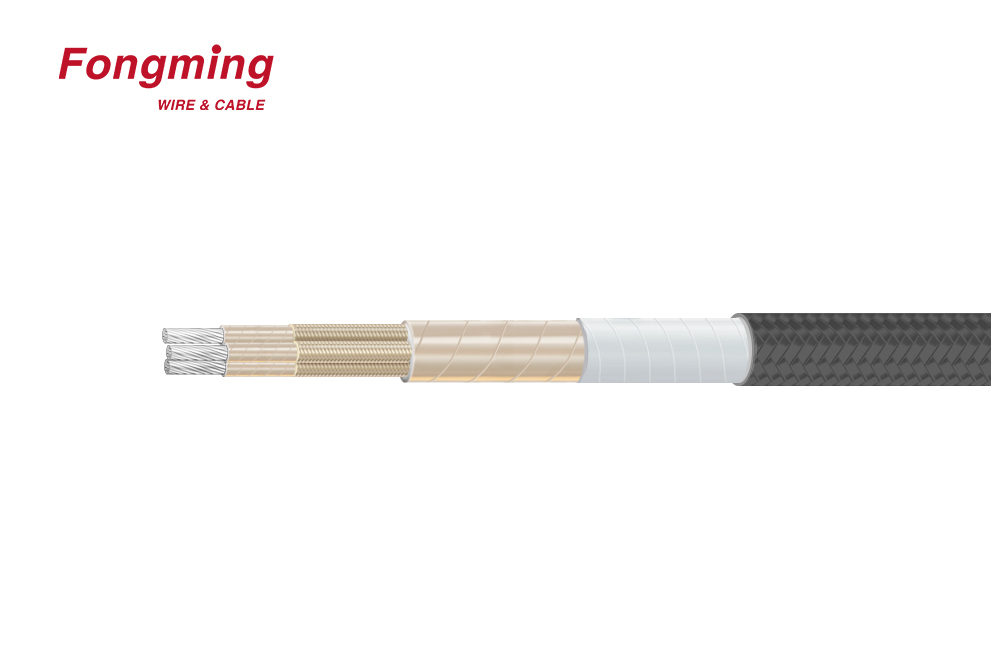

MGT550-MULTI
Fongming
产品描述
名称:耐高温电缆
型号:MGT550-MULTI
尺寸:3*18-4*4/0AWG
产品性能
额定电压:600V
额定温度:550°C

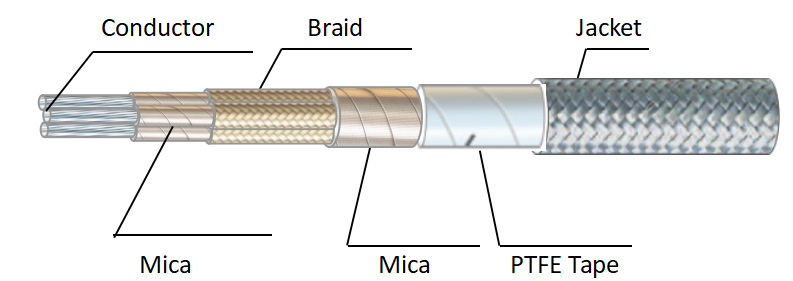

产品结构
导体:镀镍丝27%
绝缘:云母绕包
外护:特种玻纤编织，高温涂层
成缆&填充:(可选)玻纤
绕包:云母绕包2层
绕包:PTFE绕包
外护:特种玻纤编织，硬质树脂涂层
颜色:黑色
Size (AWG) | Conductor Structure | Diameter (mm) | Mica Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Mica Thickness (mm) | Diameter (mm) | PTFE Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) |
3*18 | 16/0.254 | 1.17 | 0.64 | 2.5 | 0.2 | 2.7 | 0.3 | 6.4 | 0.08 | 6.6 | 0.35 | 7.3±0.3 |
4*18 | 16/0.254 | 1.17 | 0.64 | 2.5 | 0.2 | 2.7 | 0.3 | 7.1 | 0.08 | 7.3 | 0.35 | 8.0±0.3 |
3*16 | 26/0.254 | 1.50 | 0.64 | 2.8 | 0.2 | 3.2 | 0.3 | 7.5 | 0.08 | 7.7 | 0.35 | 8.4±0.3 |
4*16 | 26/0.254 | 1.50 | 0.64 | 2.8 | 0.2 | 3.2 | 0.3 | 8.3 | 0.08 | 8.5 | 0.35 | 9.2±0.3 |
4*14 | 41/0.254 | 1.88 | 0.64 | 3.2 | 0.2 | 3.6 | 0.3 | 9.3 | 0.08 | 9.5 | 0.35 | 10.2±0.5 |
3*12 | 65/0.254 | 2.37 | 0.64 | 3.7 | 0.2 | 4.1 | 0.3 | 9.4 | 0.08 | 9.6 | 0.35 | 10.3±0.5 |
4*12 | 65/0.254 | 2.37 | 0.64 | 3.7 | 0.2 | 4.1 | 0.3 | 10.5 | 0.08 | 10.7 | 0.35 | 11.4±0.5 |
5*12 | 65/0.254 | 2.37 | 0.64 | 3.7 | 0.2 | 4.1 | 0.3 | 11.7 | 0.08 | 11.9 | 0.35 | 12.6±0.5 |
4*10 | 105/0.254 | 3.30 | 0.76 | 4.8 | 0.2 | 5.2 | 0.3 | 13.2 | 0.08 | 13.4 | 0.35 | 14.1±0.5 |
4*8 | 163/0.254 | 4.11 | 0.76 | 5.6 | 0.2 | 6.0 | 0.3 | 15.1 | 0.08 | 15.3 | 0.35 | 16.0±0.5 |
4*4/0 | 2080/0.254 | 14.86 | 0.89 | 16.6 | 0.25 | 17.1 | 0.3 | 41.9 | 0.08 | 42.1 | 0.35 | 42.8±1.5 |
