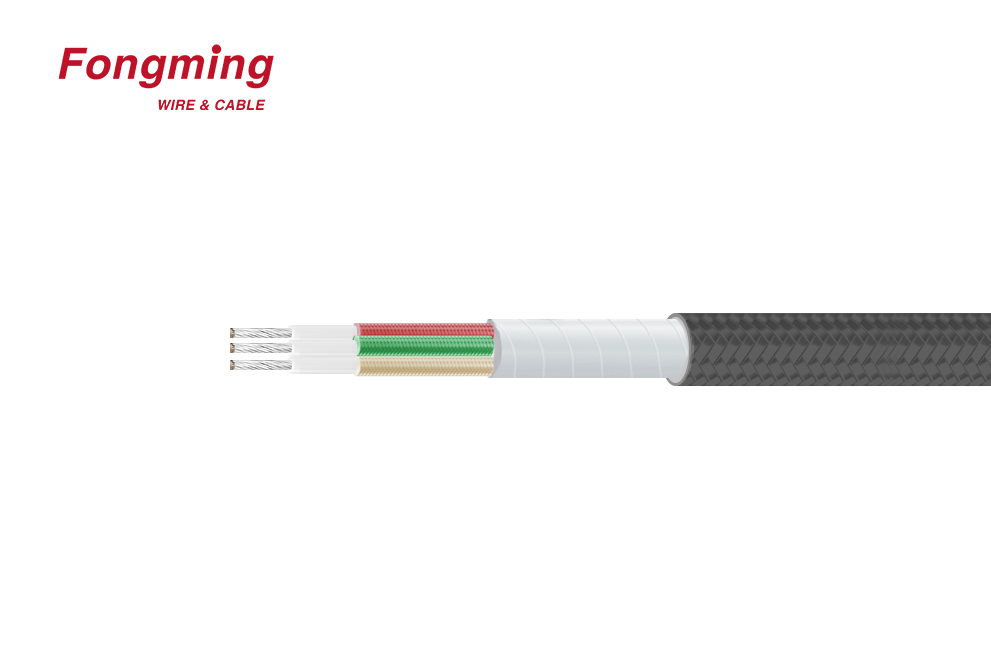

PB200-MULTI
Fongming
产品描述
名称:硅胶绝缘涤纶编织外护
电缆型号:PB200-MULTI
尺寸:3*18~2*4AWG
产品性能
额定温度:200°C
额定电压:600V

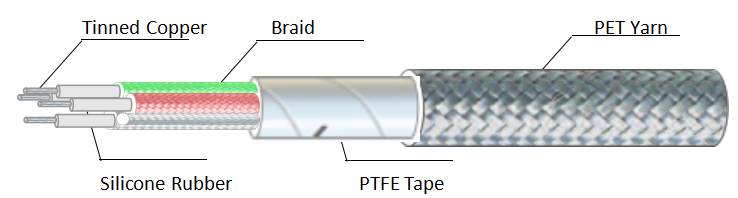

产品结构
导体:镀锡丝
绝缘:硅橡胶
颜色:白色
编织:玻纤
颜色:见色标
成缆&填充(可选):玻纤
绕包:PTFE 带
外护:涤纶纱编织,硅树脂涂层
颜色:黑色
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Wrapping Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
3*18 | 7/0.39 | 1.17 | 0.76 | 2.7 | 0.25 | 3.2 | 0.2 | 7.1 | 0.25 | 7.4±0.5 |
5*18 | 7/0.39 | 1.17 | 0.76 | 2.7 | 0.25 | 3.2 | 0.2 | 8.8 | 0.25 | 9.1±0.5 |
8*18 | 7/0.39 | 1.17 | 0.76 | 2.7 | 0.25 | 3.2 | 0.2 | 11.8 | 0.25 | 12.1±0.5 |
4*16 | 7/0.49 | 1.47 | 0.76 | 3.0 | 0.25 | 3.5 | 0.2 | 8.7 | 0.25 | 9.0±0.5 |
7*16 | 7/0.49 | 1.47 | 0.76 | 3.0 | 0.25 | 3.5 | 0.2 | 10.7 | 0.25 | 11.0±0.5 |
8*16 | 7/0.49 | 1.47 | 0.76 | 3.0 | 0.25 | 3.5 | 0.2 | 11.8 | 0.25 | 12.1±0.5 |
12*16 | 7/0.49 | 1.47 | 0.76 | 3.0 | 0.25 | 3.5 | 0.2 | 14.7 | 0.25 | 15.0±1.0 |
16*16 | 7/0.49 | 1.47 | 0.76 | 3.0 | 0.25 | 3.5 | 0.2 | 16.7 | 0.25 | 17.0±1.0 |
2*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 9.4 | 0.25 | 9.7±0.5 |
3*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 10.1 | 0.25 | 10.4±0.5 |
4*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 11.3 | 0.25 | 11.6±0.5 |
7*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 14.0 | 0.25 | 14.3±0.5 |
9*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 17.2 | 0.25 | 17.5±1.0 |
12*14 | 7/0.61 | 1.83 | 1.14 | 4.1 | 0.25 | 4.6 | 0.2 | 19.3 | 0.25 | 19.6±1.0 |
3*12 | 19/0.47 | 2.35 | 1.14 | 4.6 | 0.25 | 5.1 | 0.2 | 11.2 | 0.25 | 11.5±10.5 |
4*12 | 19/0.47 | 2.35 | 1.14 | 4.6 | 0.25 | 5.1 | 0.2 | 12.5 | 0.25 | 12.8±0.5 |
7*12 | 19/0.47 | 2.35 | 1.14 | 4.6 | 0.25 | 5.1 | 0.2 | 15.5 | 0.25 | 15.8±1.0 |
9*12 | 19/0.47 | 2.35 | 1.14 | 4.6 | 0.25 | 5.1 | 0.2 | 19.1 | 0.25 | 19.4±1.0 |
12*12 | 19/0.47 | 2.35 | 1.14 | 4.6 | 0.25 | 5.1 | 0.2 | 21.4 | 0.25 | 21.7±1.0 |
3*10 | 19/0.6 | 3.00 | 1.14 | 5.3 | 0.25 | 5.8 | 0.2 | 12.7 | 0.25 | 13.0±0.5 |
4*10 | 19/0.6 | 3.00 | 1.14 | 5.3 | 0.25 | 5.8 | 0.2 | 14.2 | 0.25 | 14.5±0.5 |
7*10 | 19/0.6 | 3.00 | 1.14 | 5.3 | 0.25 | 5.8 | 0.2 | 17.6 | 0.25 | 17.9±1.0 |
12*10 | 19/0.6 | 3.00 | 1.14 | 5.3 | 0.25 | 5.8 | 0.2 | 24.3 | 0.25 | 24.6±1.0 |
4*8 | 54/0.45 | 3.81 | 1.52 | 6.9 | 0.25 | 7.4 | 0.2 | 18.1 | 0.25 | 18.4±1.0 |
4*6 | 84/0.45 | 4.76 | 1.52 | 7.8 | 0.25 | 8.3 | 0.2 | 20.2 | 0.25 | 20.5±1.0 |
4*4 | 133/0.45 | 6.80 | 1.52 | 9.8 | 0.25 | 10.3 | 0.2 | 25.1 | 0.25 | 25.4±1.0 |
4*2 | 259/0.41 | 8.36 | 1.52 | 11.4 | 0.25 | 11.9 | 0.2 | 28.9 | 0.25 | 29.1±1.0 |
4*2/0 | 416/0.45 | 11.63 | 2.03 | 15.7 | 0.25 | 16.2 | 0.2 | 39.3 | 0.25 | 39.6±1.0 |
